AMD issues.

[Swinny]

Far from savvy on this but will give it a shot.

Annnnnd it went again within 1 minutes of been on the game



[Swinny]

And now that have zero power coming to my screens.

And my motherboard keeps beeping at me.

Can’t upload a photo of the screen I just got as I had to hard shut down but here is there text

ASUS ROG

ASUS RUG STRIX X670E-A GAMING WIFI ACPI BIOS Revision 1905

CPU: AMD Ryzen 7 7800X3D 8-Core Processor

Speed: 4200MHZ

Total Memory: 32768MB (DDR5-4800)

USB Devices total: O Drive, 2 Keyboards, 2 Mice, O Hub

Detected

storages. ••

SATA6G_1: ST4000NE001-2MA101

M.2_1: Samsung SSD 980

PRO

500GB

M.2_2: Samsung SSD 990 PRO 2TB

The system has POSTed in safe mode.

This

or if the power button was held in to force the system off.

may be due to the previous post attemet falling because of system instal

If the system failed

to POST after you made Changes to UEFI settings.

Tou may wish to revert to stable settings to prevent POST faliure:

Press F1 to Run SETUP



[SpyderTracks]

Annnnnd it went again within 1 minutes of been on the game

When you say it went what do you mean? Can you post a screenshot?



[Swinny]

When you say it went what do you mean? Can you post a screenshot?

Same process as prior black screens then comes back on basically what was happening when I had adrenaline installed but without the error.

Then I restarted pc - screens wouldn’t come on big pc was on had to hard shut down and then the text above is what I got



[SpyderTracks]

And my motherboard keeps beeping at me.

What were the beep codes? (short - long)



[Swinny]

What were the beep codes? (short - long)

Short if I remember



[SpyderTracks]

Short if I remember

Just one short?



[Swinny]

Just one short?

Yea a couple times.

As a update.

I have went back to safe mode - uninstalled drivers and then re installed with adrenaline - Ive been on for 13 mins so far and touch wood all good.

Also as a update i stream on twitch and instead now of using OBS i am using the built in stream from Adrenaline.



[Swinny]

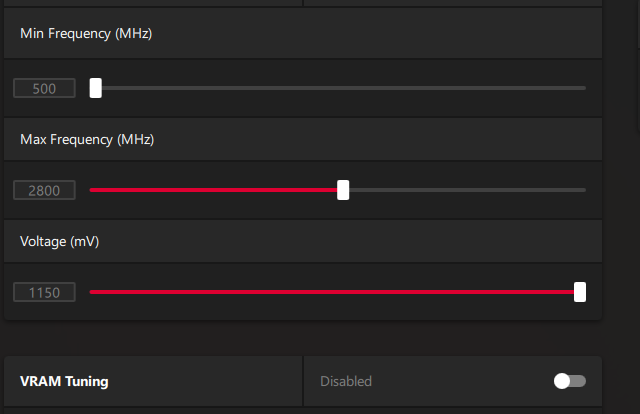

I have also specifically set the max MHz Frequency again of the GPU to 2800 as seen below



[SpyderTracks]

I have also specifically set the max MHz Frequency again of the GPU to 2800 as seen below
View attachment 42140

The card doesn't go anywhere near 2800MHz anyway, so that won't actually make any difference, it's max oc boost is 2615Mhz

Have you still got Asus Armory Crate installed?

I'm fully believing this is a software conflict, Armory Crate is a definite one to fully remove, but has to be with the official uninstaller tool, can't do it from windows

How to Cleanly Uninstall and Reinstall Armoury Crate

If you have ROG hardware in your PC, our Armoury Crate software manages many of the exclusive ROG features available to your rig. Here’s how get Armoury Crate up and running with a clean slate.

rog.asus.com



[SpyderTracks]

I have also specifically set the max MHz Frequency again of the GPU to 2800 as seen below
View attachment 42140

Oh, hold on, had you manually maxxed out the frequency and voltage on the AMD driver? That voltage and frequency are far too high for this card, no wonder it's not stable!

You didn't mention you'd manually overclocked it, or was it set like after you'd clean installed adrenalin?

GPU Tuning needs to be disabled for testing, and I'd suggest fully if you're not familiar with how to reach an overclock.



[Swinny]

Oh, hold on, had you manually maxxed out the frequency and voltage on the AMD driver? That voltage and frequency are far too high for this card, no wonder it's not stable!

You didn't mention you'd manually overclocked it, or was it set like after you'd clean installed adrenalin?

GPU Tuning needs to be disabled for testing, and I'd suggest fully if you're not familiar with how to reach an overclock.

Never touched the settings manually mate wouldn’t know what to begin

These are the standard settings



[SpyderTracks]

Never touched the settings manually mate wouldn’t know what to begin

These are the standard settings

They're not standard, if you've enabled that section, that's applying an overclock way outside of the graphics cards capabilities. If you set that voltage on the outset there's a very possible chance you've fried the card, there's no guarantee your chip would be capable of that voltage



[Swinny]

They're not standard, if you've enabled that section, that's applying an overclock way outside of the graphics cards capabilities. If you set that voltage on the outset there's a very possible chance you've fried the card, there's no guarantee your chip would be capable of that voltage

Trust me these are default settings on my way to work now but I’ll screenshot I get home

Or let me rephrase they are untouched by me the only thing I have changed is the mhz to 2800



[SpyderTracks]

Trust me these are default settings on my way to work now but I’ll screenshot I get home

Or let me rephrase they are untouched by me the only thing I have changed is the mhz to 2800

You’re not following, that is the overclocking section, it’s disabled by default. You haven’t reduced max clocks to 2800, you’ve put a flat out increase from the already overlocked 2615mhz.



[Swinny]

You’re not following, that is the overclocking section, it’s disabled by default. You haven’t reduced max clocks to 2800, you’ve put a flat out increase from the already overlocked 2615mhz.

Ok clearly I am not.

As when I went in there to reduce it to 2800 it was at 2975 so what do I need to do please



[SpyderTracks]

Ok clearly I am not.

As when I went in there to reduce it to 2800 it was at 2975 so what do I need to do please

As already said, that section needs to be left disabled



[Swinny]

Ok as ix

As already said, that section needs to be left disabled

Thanks again for all your help I do appreciate,

Also appreciate it may be frustrating talking to me about it as I’m thick as mince with it all.

Will post screenshots when I get home,

How will I know if I have knackered the CPU? As now I’m particularly worried



[Swinny]

So are you saying to keep it at "Default" SETTING as moving it to Manual Tuning is creating the issue?



[Swinny]

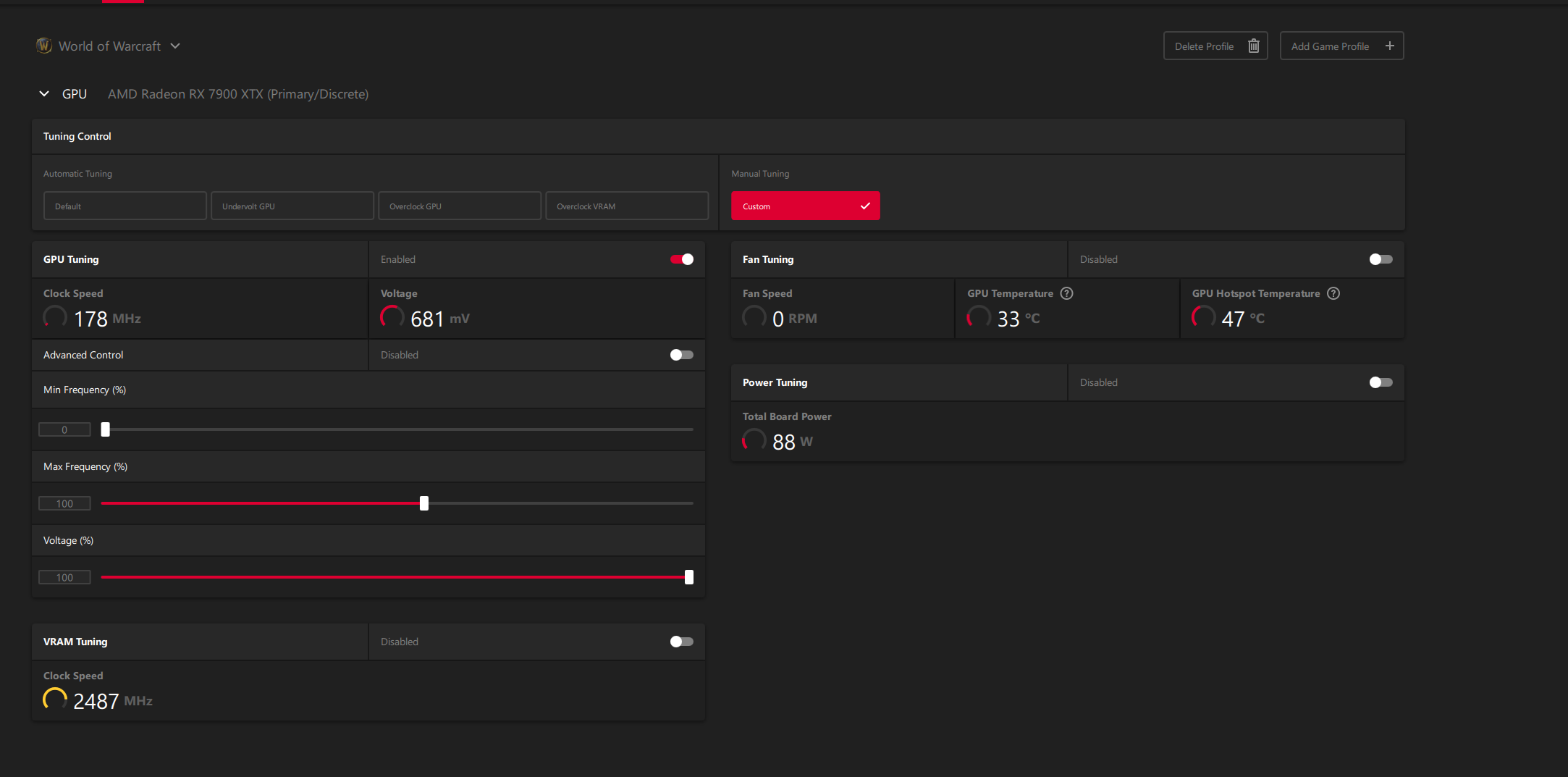

These are the figures on the default setting from a 60s stress test if this helps.
