New laptop issues
- Thread starter Akli
- Start date
The laptop does not want te to recognize my monitor through the USB-C to display port feature. HDMI works fine but then I am limited to 60hz. Any suggestion?
I am using this Cable: https://www.cablematters.com/pc-710...e-in-black-thunderbolt-3-port-compatible.aspx
It is new and it works fine with other devices like my brothers' HP laptop and even my Samsung Galaxy s8.
I have the latest game-ready drivers installed for the RTX 3070 using the Nvidia Gforce experience software.
Chassis en display
Recoil-serie: 15,6" mat QHD 165 Hz sRGB 100 % led-breedbeeldscherm (2560x1440)
Processor (CPU)
AMD Ryzen™ 9 8 Core 5900HX (3,3 GHz, 4,6 GHz Turbo)
Geheugen (RAM)
8 GB Corsair 2400 MHz SODIMM DDR4 (2 x 4 GB) Has been upgraded to 32gb 3200 mhz crucial ram.
Grafische kaart
NVIDIA® GeForce® RTX 3070 - 8,0 GB GDDR6 Video RAM - DirectX® 12.1
1e M.2 SSD-station
2 TB SAMSUNG 970 EVO PLUS M.2, PCIe NVMe (maximaal 3500 MB/R, 3300 MB/W)
Geheugenkaartlezer
Geïntegreerde SD-geheugenkaartlezer
Wisselstroomadapter
1x 230W-oplader
Stroomkabel
1 x stroomkabel van 1 meter voor Europa
Batterij
Recoil Series geïntegreerde 94WH lithiumionbatterij
Warmtegeleidende pasta
ARCTIC MX-4 VERBINDING MET EXTREME THERMISCHE GELEIDBAARHEID
Geluidskaart
2-kanaals High Definition Audio + MIC/headsetaansluiting
Draadloze netwerkkaart
GIGABIT LAN (BEDRAAD) & DRAADLOOS INTEL® Wi-Fi 6E AX210 (2,4 Gbps) + BT 5.0
USB/Thunderbolt-opties
1 x USB 3.2-POORT (Type C) + 3 x USB 3.2-POORTEN
Taal toetsenbord
MECHANISCH RGB-TOETSENBORD MET ACHTERGRONDVERLICHTING PER TOETS VOOR DE VS
Besturingssysteem
GEEN BESTURINGSSYSTEEM VEREIST
Taal van besturingssysteem
Nederland/Nederland - Nederlands
Windows-herstelmedia
GEEN HERSTELMEDIA NODIG
Office-software
GRATIS 30 dagen Microsoft 365® op proef (besturingssysteem vereist)
Antivirus
GEEN ANTI-VIRUSSOFTWARE
Browser
Google Chrome™
Toetsenbord en muis
GEÏNTEGREERDE TOUCHPAD-MUIS MET 2 KNOPPEN
Webcam
GEÏNTEGREERDE HD-WEBCAM 1MP
I am using this Cable: https://www.cablematters.com/pc-710...e-in-black-thunderbolt-3-port-compatible.aspx
It is new and it works fine with other devices like my brothers' HP laptop and even my Samsung Galaxy s8.
I have the latest game-ready drivers installed for the RTX 3070 using the Nvidia Gforce experience software.
Chassis en display
Recoil-serie: 15,6" mat QHD 165 Hz sRGB 100 % led-breedbeeldscherm (2560x1440)
Processor (CPU)
AMD Ryzen™ 9 8 Core 5900HX (3,3 GHz, 4,6 GHz Turbo)
Geheugen (RAM)
8 GB Corsair 2400 MHz SODIMM DDR4 (2 x 4 GB) Has been upgraded to 32gb 3200 mhz crucial ram.
Grafische kaart
NVIDIA® GeForce® RTX 3070 - 8,0 GB GDDR6 Video RAM - DirectX® 12.1
1e M.2 SSD-station
2 TB SAMSUNG 970 EVO PLUS M.2, PCIe NVMe (maximaal 3500 MB/R, 3300 MB/W)
Geheugenkaartlezer
Geïntegreerde SD-geheugenkaartlezer
Wisselstroomadapter
1x 230W-oplader
Stroomkabel
1 x stroomkabel van 1 meter voor Europa
Batterij
Recoil Series geïntegreerde 94WH lithiumionbatterij
Warmtegeleidende pasta
ARCTIC MX-4 VERBINDING MET EXTREME THERMISCHE GELEIDBAARHEID
Geluidskaart
2-kanaals High Definition Audio + MIC/headsetaansluiting
Draadloze netwerkkaart
GIGABIT LAN (BEDRAAD) & DRAADLOOS INTEL® Wi-Fi 6E AX210 (2,4 Gbps) + BT 5.0
USB/Thunderbolt-opties
1 x USB 3.2-POORT (Type C) + 3 x USB 3.2-POORTEN
Taal toetsenbord
MECHANISCH RGB-TOETSENBORD MET ACHTERGRONDVERLICHTING PER TOETS VOOR DE VS
Besturingssysteem
GEEN BESTURINGSSYSTEEM VEREIST
Taal van besturingssysteem
Nederland/Nederland - Nederlands
Windows-herstelmedia
GEEN HERSTELMEDIA NODIG
Office-software
GRATIS 30 dagen Microsoft 365® op proef (besturingssysteem vereist)
Antivirus
GEEN ANTI-VIRUSSOFTWARE
Browser
Google Chrome™
Toetsenbord en muis
GEÏNTEGREERDE TOUCHPAD-MUIS MET 2 KNOPPEN
Webcam
GEÏNTEGREERDE HD-WEBCAM 1MP
Last edited:
SpyderTracks
We love you Ukraine
According to the "features" tab of that cable, it's only compatible with certain Dell models:
"Dell companion Thunderbolt 3 to DisplayPort cable supports the newest Dell computers with Thunderbolt 3; Display Port to USB C cable connects to monitors in the conference room or classroom; USB C to DisplayPort adapter cable is compatible with popular Dell models with Thunderbolt 3 portsincluding the Dell XPS 12 9250, 13 9350/9360/9365, 15 9550/9560, Latitude 5480/5580/7275/7280/7370/7480/7520/7720/E5570, Precision 3520/15 3510/5510/M7510, 17 M7710, Alienware 13/15/17"
Ok, do you happen to know which cable I should get?
SpyderTracks
We love you Ukraine
Try this, personally I'm a big fan of StartTech, been using them for decades:
StarTech.com 3ft/1m USB C to DisplayPort 1.2 Cable 4K 60Hz - USB-C to DisplayPort Adapter Cable - HBR2 - USB Type-C DP Alt Mode to DP Monitor Video Cable - Works w/ Thunderbolt 3 - Black (CDP2DPMM1MB): Amazon.co.uk: Electronics & Photo
Free delivery and returns on eligible orders. Buy StarTech.com 3ft/1m USB C to DisplayPort 1.2 Cable 4K 60Hz - USB-C to DisplayPort Adapter Cable - HBR2 - USB Type-C DP Alt Mode to DP Monitor Video Cable - Works w/ Thunderbolt 3 - Black (CDP2DPMM1MB) at Amazon UK.
www.amazon.co.uk
Also, only one of the USB C ports carries display, so if it doesn't work in one, try the other.
https://www.amazon.nl/StarTech-com-USB-C-naar-DisplayPort-kabel/dp/B083V6VMNM/ref=sr_1_19?__mk_nl_NL=ÅMÅŽÕÑ&dchild=1&keywords=StarTech.com+USB-C+naar+DisplayPort+1.4&qid=1629658709&sr=8-19
This one from StarTech. is this also fine?
I hope this works with VR.
Also, there is only one usb c port on the laptop.
SpyderTracks
We love you Ukraine
That looks ok, sorry must have read the specs incorrectly about the extra USB C port.
SpyderTracks
We love you Ukraine
Have you installed the driver for it?
I installed all drivers that are on the download page except amd raid and thx spacial sound.
SpyderTracks
We love you Ukraine

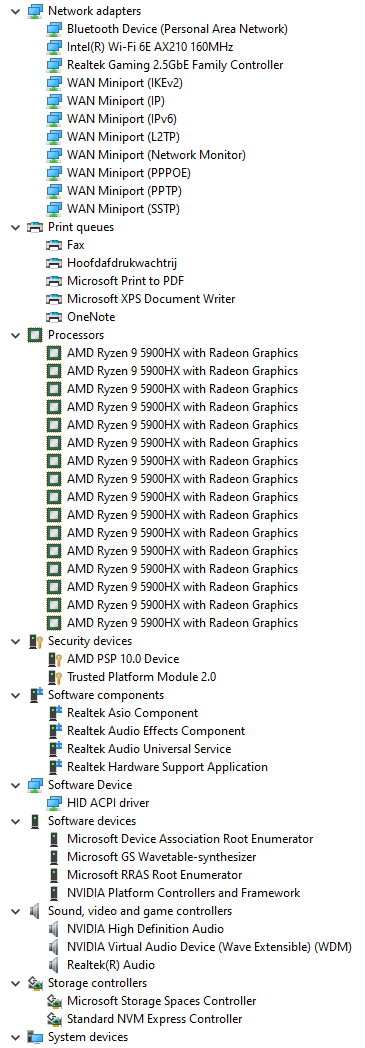

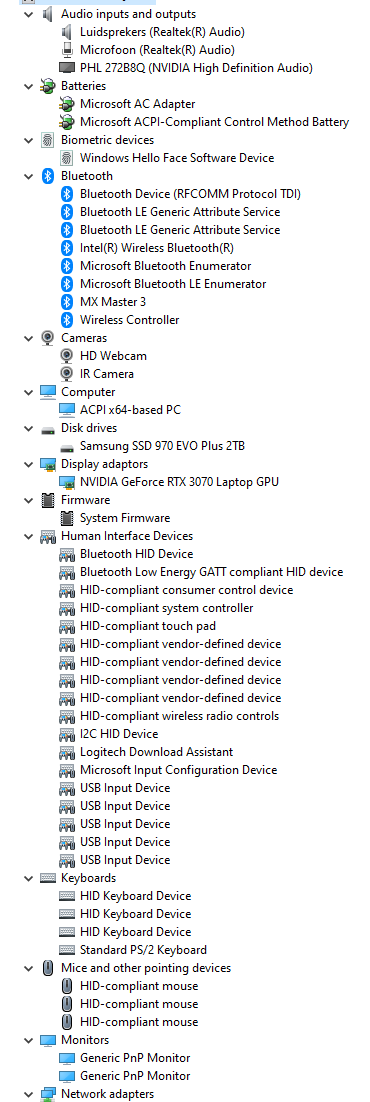

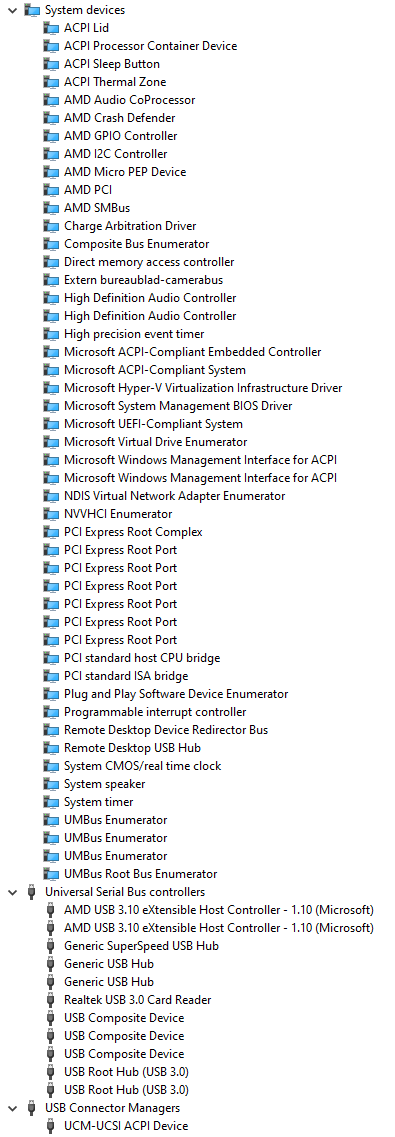

Can you take a screenshot of your device manager?
SpyderTracks
We love you Ukraine
If you've installed all drivers from your download section then windows is likely not configured correctly as a lot will be out of date, as previously advised you need to let windows install any drivers and then manually install the remainder.
Ok, I will try to re-install windows tonight.
I installed everything from the download page because the wifi module was not working because it did not have a driver.
I'll do it differently tonight and only install the wifi driver and let windows figure it out on its own and then install the rest of the drivers it could not find.
I installed everything from the download page because the wifi module was not working because it did not have a driver.
I'll do it differently tonight and only install the wifi driver and let windows figure it out on its own and then install the rest of the drivers it could not find.
Last edited:
ubuysa
The BSOD Doctor
Forgive a software guy talking about hardware, but could the issue with DP1.2 over this USB-C port be related to that AMD CPU? I note that Thunderbolt 4 is only available with Intel CPUs and I wonder whether DP1.2 is also an Intel only feature (even though it doesn't say so in the spec)?
Do we know for sure that DP1.2 output is supported over that USB-C port in an AMD build?
Do we know for sure that DP1.2 output is supported over that USB-C port in an AMD build?
The specs of identical laptops say USB-C 3.2 Gen2 (DisplayPort 1.4: yes, G-SYNC compatible | Power Delivery: no). And it is advertised on the PCS website to support display port over USB-C.
SpyderTracks
We love you Ukraine
yes but the capabilities will be different if its an AMD cpu or an Intel, as with intel it will be thunderbolt 4
Bhuna50
Author Level
Has the USB-c port never worked?
Have you 'jolted' the laptop in anyway - Im not saying dropped or anything, but moved it etc.
It might be worth opening it up if you feel confident enough and checking for any loose wire that might correspond with the USB-c port - it might just be a case of clip it back in if it came loose / knocked loose during transit or anything.
If not, then if all the drivers have been installed and you have no missing devices listed (which looks to be the case) then you might have to RMA it.
Have you 'jolted' the laptop in anyway - Im not saying dropped or anything, but moved it etc.
It might be worth opening it up if you feel confident enough and checking for any loose wire that might correspond with the USB-c port - it might just be a case of clip it back in if it came loose / knocked loose during transit or anything.
If not, then if all the drivers have been installed and you have no missing devices listed (which looks to be the case) then you might have to RMA it.
