Missing SATA cables
- Thread starter AleTax
- Start date
The PSU will come with 2 cables that each have 4 SATA power connectors on them.
Going by the specs in your build, at least one of those cables must be connected to the PSU given that you have both a SSD and a normal mechanical hard drive installed. It's possible that those drives may even be connected to a different cables for cable management.
If you mean SATA data cables, most motherboards provide 2 of these, and again these will be in use by both your SSD and 1TB Barracuda drive.

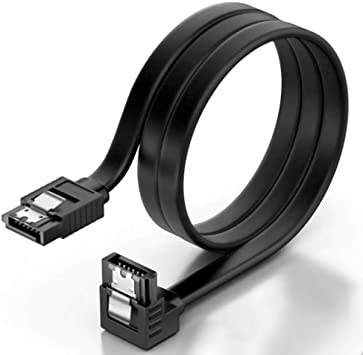

When people refer to SATA cables, most mean those that transmit data. I've never known a PSU manufacturer to provide SATA data cables.

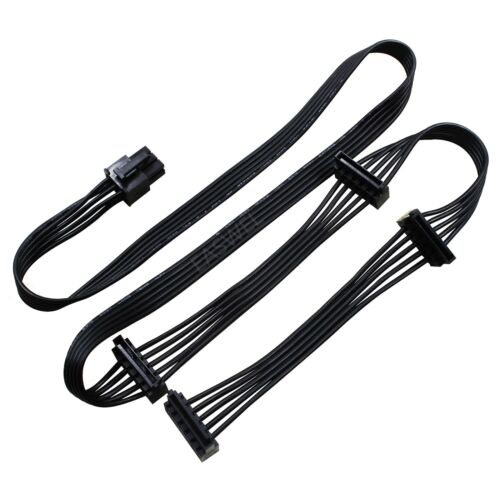

The SATA power cable for the PSU will look similar to below
Last edited:
The TX750M can only support a maximum of 4off 'SATA' 6 pin connections - so just to put your mind at ease you shouldn't expect to find 8 separate cables. Any cables not used in the build but supplied with the equipment will be in the welcome pack.
As @ColEyt showed above in their post, each SATA power cable can supply power to 4off devices, so I'd expect you to receive 2off these (this is confirmed in the manual).

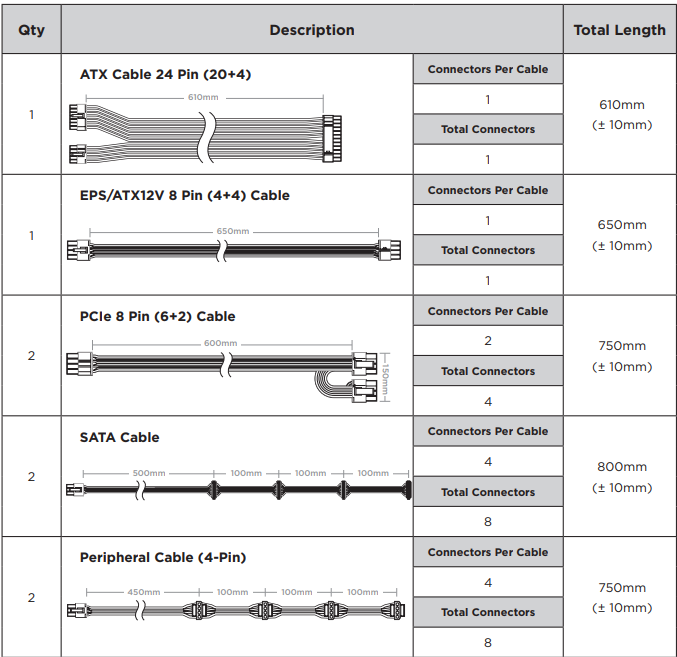

From Corsair website (the manual: https://www.corsair.com/corsairmedia/sys_master/productcontent/TXM_Manual.pdf )
So as I posted above, the manual for your PSU says you get 8 SATA power connectors which is not the same thing as 8 cables... you get 2 cables which each have 4 connections on them. Ideally the manual should be in your welcome pack too.
If you mean the data cable, its something else entirely (as @ColEyt showed above) ... do you have the 'data' cable and are just looking to power another device (assume a hard drive or SSD?).
NoddyPirate
Grand Master
8x SATA 'connections' I think is what it means as per @steaky360 post above....?
(EDIT- sorry @steaky360 you're too quick for me!)
AleTax
VALUED CONTRIBUTOR
I need to power an ARGB GPU support bracket which uses SATA connection and not ARGB connector on motherboard
As you've not got a spare cable in your welcome pack, you'll probably find that both the SATA power cables are already installed - perhaps the ARGB bracket cable can be routed to meet one of the existing SATA power connections (or vice versa, the cable could be routed to the bracket if needs be) - alternatively, an extension could be used if you buy one of those.
AleTax
VALUED CONTRIBUTOR
First of all, thank you for the help you’re giving, since I didn’t thank you yet. Well, the only way I can power that bracket is via SATA, so you’re saying I should buy a SATA splitter?
I don't think that's what @steaky360 is suggesting, he is offering that as an alternative solution, if you are unable to connect your device to one of the spare SATA power connectors on one of the cables from your PSU.
So you will still need to identify those cables within your case. The easiest way will be to trace the power connector from your hard drive/SSD.
If both those drives connect to the same cable from the PSU, then you should have 2 spare sata power connectors on that cable.
In addition you should have another psu cable with 4 sata power connectors, which may be installed and connected to another device in your machine or because that cable is modular, wont have been connected, in which case that should be in your welcome pack.
If it isn't then yes of course speak to PCS about it.
However we need to ensure what is connected to your psu first.

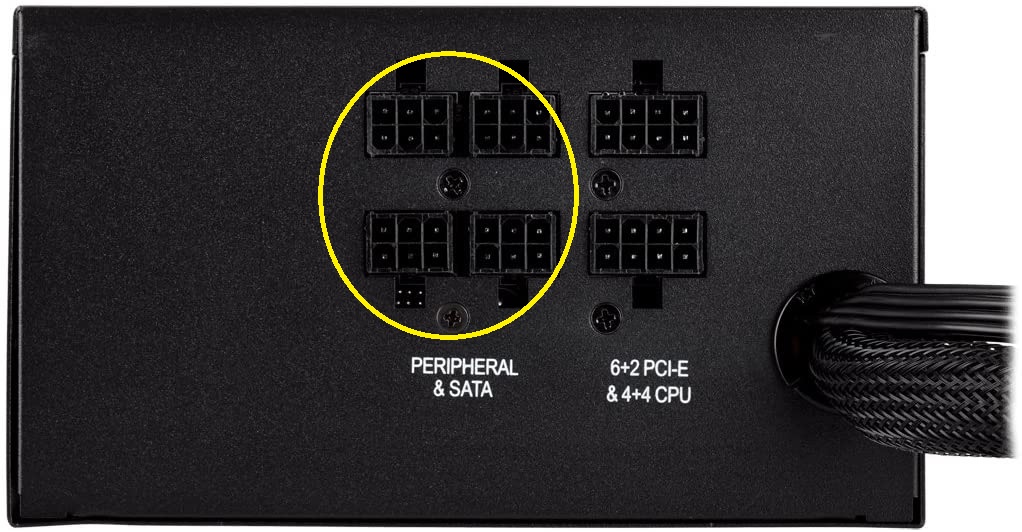

Does your psu look similar to this and if so how many of the connections within the yellow marking have cables plugged into them
So you will still need to identify those cables within your case. The easiest way will be to trace the power connector from your hard drive/SSD.
If both those drives connect to the same cable from the PSU, then you should have 2 spare sata power connectors on that cable.
In addition you should have another psu cable with 4 sata power connectors, which may be installed and connected to another device in your machine or because that cable is modular, wont have been connected, in which case that should be in your welcome pack.
If it isn't then yes of course speak to PCS about it.
However we need to ensure what is connected to your psu first.
Does your psu look similar to this and if so how many of the connections within the yellow marking have cables plugged into them
Have you looked inside the case to find where the sata cables are connected at the moment?
What is being suggested is to see if you can re-route the cables while still leaving everything else plugged in. That way you can have everything plugged in at the same time without adding splitters.
If this isn't possible then a splitter would be a good option.
AleTax
VALUED CONTRIBUTOR
I checked and they are connected to a mechanical HDD, 1 SSD, 1 commander core that came with the AIO, 1 commander core that came with case and 1 PWM repeater that came with case. Don’t know what else could be connected (obviously except GPU and motherboard being SATA connected)
AleTax
VALUED CONTRIBUTOR
I checked this yesterday and if I’m not wrong I saw some empty spots over there
Each cable has 4 power connectors on it.
2 cables must be connected to the PSU, as they should be.
With the devices connected, HDD, SSD, 2x Commander Core & 1 repeater, that suggests 5 connections currently being used, leaving 3 of them avaialble.
If you re-organise the connections you may be able to use one of them to power the bracket. If it's not possible, you will need an extension.
ok so of the 8 sata power connectors within the psu you are already using 5 of them, so that means that both those cables are connected.
so you have 3 spare connectors on those 2 cables. Are you able to re route the cables so that you can use one of the connectors to connect your argb bracket.
If not then probably a sata extension cable will be your best bet, to allow you to keep your cabling tidy.
StarTech.com 12in 15 pin SATA Power Extension Cable - SATA Power Male to Female Extender - 12 Inch SATA Power Extension Cord: Amazon.co.uk: Computers & Accessories
Free delivery and returns on eligible orders. Buy StarTech.com 12in 15 pin SATA Power Extension Cable - SATA Power Male to Female Extender - 12 Inch SATA Power Extension Cord at Amazon UK.
www.amazon.co.uk
AleTax
VALUED CONTRIBUTOR
I was thinking… AIO waterblock uses a SATA as well, motherboard and GPU as well and that makes 8 total in use…
AleTax
VALUED CONTRIBUTOR
But AIO is, so that brings us up to 6 SATA connections used. So theoretically I should have 2 available lying somewhere in my case…
The AIO pump should be connecting to a 3 pin connector on your motherboard and your Commander Core according to the Corsair Manual. Don't see any where for a sata connector to go, but as I dont own that AIO, I'm happy to be corrected.
But yes you should have at least 2 sata power connectors available, if not 3
AleTax
VALUED CONTRIBUTOR
But I can’t find them in my case. Who knows where they are…
