MrVideoFreak
Member
The max temps seem very high, should I be concerned? I have 4 case fans, and the PCS FrostFlow 100 RGB V3 Series High Performance CPU Cooler
Should I be concerned with these temps?
- Thread starter MrVideoFreak
- Start date
TonyCarter
VALUED CONTRIBUTOR
Which specific ones are you concerned about?
MrVideoFreak
Member

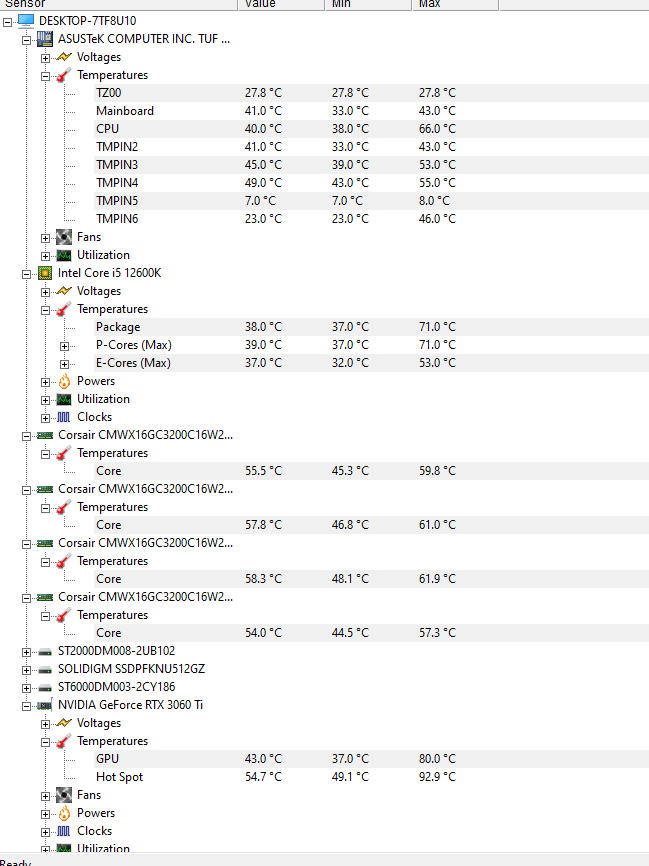

Mainly the RAM, but also the CPU and Hot Spot for the GPU
SpyderTracks
We love you Ukraine
Can you post your full specs from the order page?
MrVideoFreak
Member
| Case | PCS PRISM TG WHITE ARGB MID TOWER CASE |
| Promotional Item | Get Marvel's Midnight Suns with select GeForce RTX 30 Series GPUs! |
| Processor (CPU) | Intel® Core™ i5 10-Core Processor i5-12600K (3.7GHz) 20MB Cache |
| Motherboard | ASUS® TUF GAMING Z690-PLUS WIFI D4 (LGA1700, USB 3.2, PCIe 5.0) - ARGB Ready |
| Memory (RAM) | 64GB Corsair VENGEANCE RGB PRO DDR4 3200MHz (4 x 16GB) |
| Graphics Card | 8GB NVIDIA GEFORCE RTX 3060 Ti - HDMI, DP, LHR |
| 1st M.2 SSD Drive | 512GB SOLIDIGM P41+ GEN 4 M.2 NVMe PCIe SSD (up to 3500MB/sR, 1625MB/sW) |
| 1st Storage Drive | 2TB SEAGATE BARRACUDA SATA-III 3.5" HDD, 6GB/s, 7200RPM, 256MB CACHE |
| DVD/BLU-RAY Drive | NOT REQUIRED |
| Power Supply | CORSAIR 750W RMe SERIES™ MODULAR 80 PLUS® GOLD, ULTRA QUIET |
| Power Cable | 1 x 1.5 Metre UK Power Cable (Kettle Lead) |
| Processor Cooling | PCS FrostFlow 100 RGB V3 Series High Performance CPU Cooler |
| Thermal Paste | STANDARD THERMAL PASTE FOR SUFFICIENT COOLING |
| Sound Card | Asus Xonar AE 7.1-Channel Gaming Audio Card |
| Network Card | 10/100/1000 GIGABIT LAN PORT |
| Wireless Network Card | NOT REQUIRED |
| USB/Thunderbolt Options | MIN. 2 x USB 3.0 & 2 x USB 2.0 PORTS @ BACK PANEL + MIN. 2 FRONT PORTS |
| Operating System | Windows 10 Home 64 Bit - inc. Single Licence |
SpyderTracks
We love you Ukraine
Quick test is to run the PC with the side off the case for about 10 minutes and then do another screengrab of the temps to compare.
My guess is it's the case, generally wouldn't recommend them as they're not great for airflow.
There's no temps that are in dangerous territory by the way, just not optimal.
SpyderTracks
We love you Ukraine
Should elaborate, if you see temps drop in a meaningful manner, as in 5c or so, then you know it's an airflow problem with the case paired with your components.
And you need to test with a known load capacity ie 100% on cpu and gpu, so throttle them with Furmark for GPU and Prime95 for CPU
And you need to test with a known load capacity ie 100% on cpu and gpu, so throttle them with Furmark for GPU and Prime95 for CPU
System is definitely struggling with airflow IMO. Above is a good way to narrow it down.
As is, run Prime 95 and record the temps after 10 minutes of small FFT torture test.
Take the side off then give it 15 minutes to cool down before running again. to get a comparison.
My guess is there will be a reasonable difference (if you left it much more than 10 minutes I think it would heat soak).
Do it all again stressing the CPU and the GPU at the same time (GPU on its own will be meaningless). If you get a huge difference with the GPU airflow is the issue.
The temps are OK, just not optimal for boost clocks etc.
As is, run Prime 95 and record the temps after 10 minutes of small FFT torture test.
Take the side off then give it 15 minutes to cool down before running again. to get a comparison.
My guess is there will be a reasonable difference (if you left it much more than 10 minutes I think it would heat soak).
Do it all again stressing the CPU and the GPU at the same time (GPU on its own will be meaningless). If you get a huge difference with the GPU airflow is the issue.
The temps are OK, just not optimal for boost clocks etc.
