Replacement power switch

W

Wsbudesign

Member
How do i go about replacing tbe power switch on my case.
Had an i7 desktop made by pcspecialists about 5 years ago. Last week the pc failed to start and then came up with a fatal error saying that the power supply was unreliable or tbere was a power surge.
I had issues booting into either the bios or windows after that...
Then the pc wont boot and keeps turning itself off.
Today the switch wont even start...
Can i get a new switch as it looks like its integrated into the 2x usb and sound in and out panel..

SpyderTracks

SpyderTracks

We love you Ukraine
Wsbudesign said:
How do i go about replacing tbe power switch on my case.
Had an i7 desktop made by pcspecialists about 5 years ago. Last week the pc failed to start and then came up with a fatal error saying that the power supply was unreliable or tbere was a power surge.
I had issues booting into either the bios or windows after that...
Then the pc wont boot and keeps turning itself off.
Today the switch wont even start...
Can i get a new switch as it looks like its integrated into the 2x usb and sound in and out panel..
Click to expand...
Can you post your full specs from the order page?

W

Wsbudesign

Member
Showing Order Reference 923779
CaseCOOLERMASTER K350 GAMING CASE
Processor (CPU)Intel® Core™i7 Six Core Processor i7-5820K (3.3GHz) 15MB Cache
MotherboardASUS® SABERTOOTH X99: ATX, USB 3.1, SATA 6 GB/s
Memory (RAM)32GB Corsair Vengeance DDR4 3000MHz X.M.P (4 x 8GB)
Graphics Card6GB NVIDIA GEFORCE GTX 980 Ti - DVI, HDMI, 3x DP - GeForce GTX VR Ready!
2nd Graphics CardNONE
3rd Graphics CardNONE
1st Storage Drive960GB KINGSTON V310 2.5" SSD, SATA 6 Gb (450MB/R, 450MB/W)
2nd Storage Drive2TB WD BLACK 3.5" WD2003FZEX, SATA 6 Gb/s, 64MB CACHE (7200rpm)
1st M.2 SSD Drive512GB SAMSUNG SM951 M.2, PCIe NVMe (up to 2150MB/R, 1550MB/W)
1st PCI-E SSD DriveNONE
2nd PCI-E SSD DriveNONE
RAIDNONE
DVD/BLU-RAY Drive16x BLU-RAY WRITER DRIVE, 16x DVD ±R/±RW & SOFTWARE
2nd DVD/BLU-RAY DriveNONE
External Hard DriveNONE
Memory Card ReaderINTERNAL 52 IN 1 CARD READER (XD, MS, CF, SD, etc) + 1 x USB 2.0 PORT
Power SupplyCORSAIR 750W CS SERIES™ MODULAR 80 PLUS® GOLD, ULTRA QUIET
Power Cable1 x 1 Metre UK Power Cable (Kettle Lead)
Processor CoolingINTEL SOCKET LGA2011 STANDARD CPU COOLER
Thermal PasteARCTIC MX-4 EXTREME THERMAL CONDUCTIVITY COMPOUND
LED LightingNONE
Fan ControllerNONE
Extra Case FansNONE
Sound CardONBOARD 8 CHANNEL (7.1) HIGH DEF AUDIO (AS STANDARD)
Wireless Network Card10/100/1000 GIGABIT LAN PORT (Wi-Fi NOT INCLUDED)
Wireless Router/HomePlugsNONE
USB/Thunderbolt OptionsMIN. 2 x USB 3.0 & 6 x USB 2.0 PORTS @ BACK PANEL + MIN. 2 FRONT PORTS
Capture/Streaming CardsNONE
TV CardNONE
Operating SystemGenuine Windows 10 Professional 64 Bit - inc DVD & Licence
Operating System LanguageUnited Kingdom - English Language
Windows Recovery MediaWindows 10 (64-bit) Professional DVD with paper sleeve
MonitorASUS VG248QE 24" 3D 144Hz GAMING DISPLAY
Eyefinity AdapterNVIDIA GEFORCE 3D VISION 2 WIRELESS STEREOSCOPIC KIT

Maximum Required Power715W

Production Dates
Processed Date29-01-2016
Pre-Production Date02-02-2016
Build Date19-02-2016
Test Date22-02-2016
QC Date23-02-2016
Dispatch Date23-02-2016

W

Wsbudesign

Member

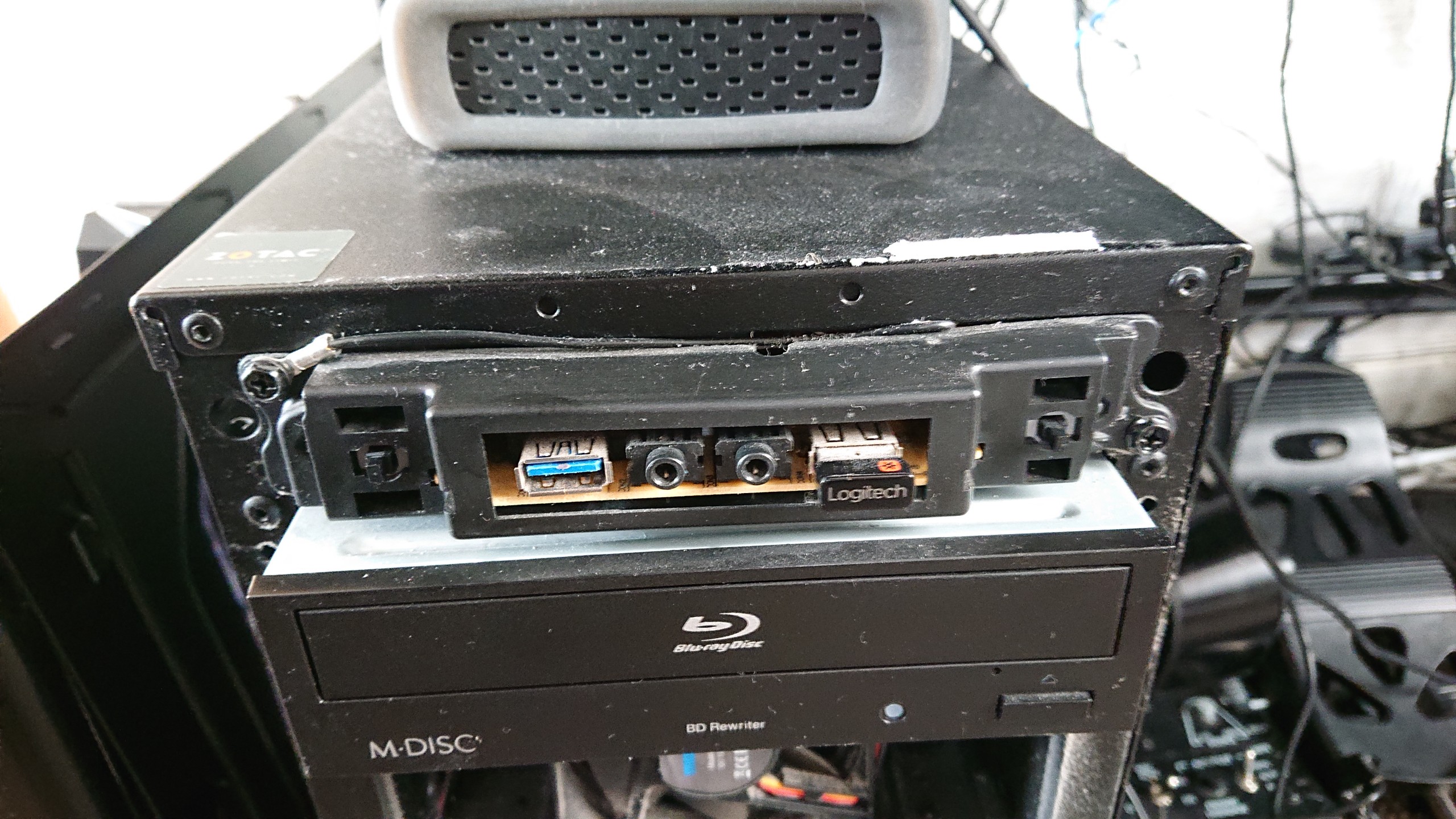

A pic with the front cover removed

SpyderTracks

SpyderTracks

We love you Ukraine
It's unlikely to be the power switch.

There's usually a power button on the motherboard, try pressing that.

I wouldn't go fiddling with the case, you're likely to cause damage.

AgentCooper

AgentCooper

At Least I Have Chicken
Moderator
Also, please do some dusting when you get a minute. Your system will thank you for it and I’ll stop having a panic attack.

W

Wsbudesign

Member
Seriously guys i only cleaned the internals the ither week but not had any coarse to take the front off 😳 i will clean...
I thought it might be the switch because it would jump into life when you wingle the switch about... And then stop and start..
Where would i find the power switch on the motherboard?

Martinr36

Martinr36

MOST VALUED CONTRIBUTOR
you never know with that amount of grime in there a good blow out wit a can of compressed air might help

W

Wsbudesign

Member
Case fully cleaned and new Power Supply ordered.
Still like to know if i can get a replacement switch though in case the power supply isnt the issue.
Anyone know?

W

Wsbudesign

Member
Right ok.. So not good news. Power supply replaced but still dead.
I even swapped round the power switch and reset switch on tbe motberboard pins to see if it was the power switch and still nothing 🤔.

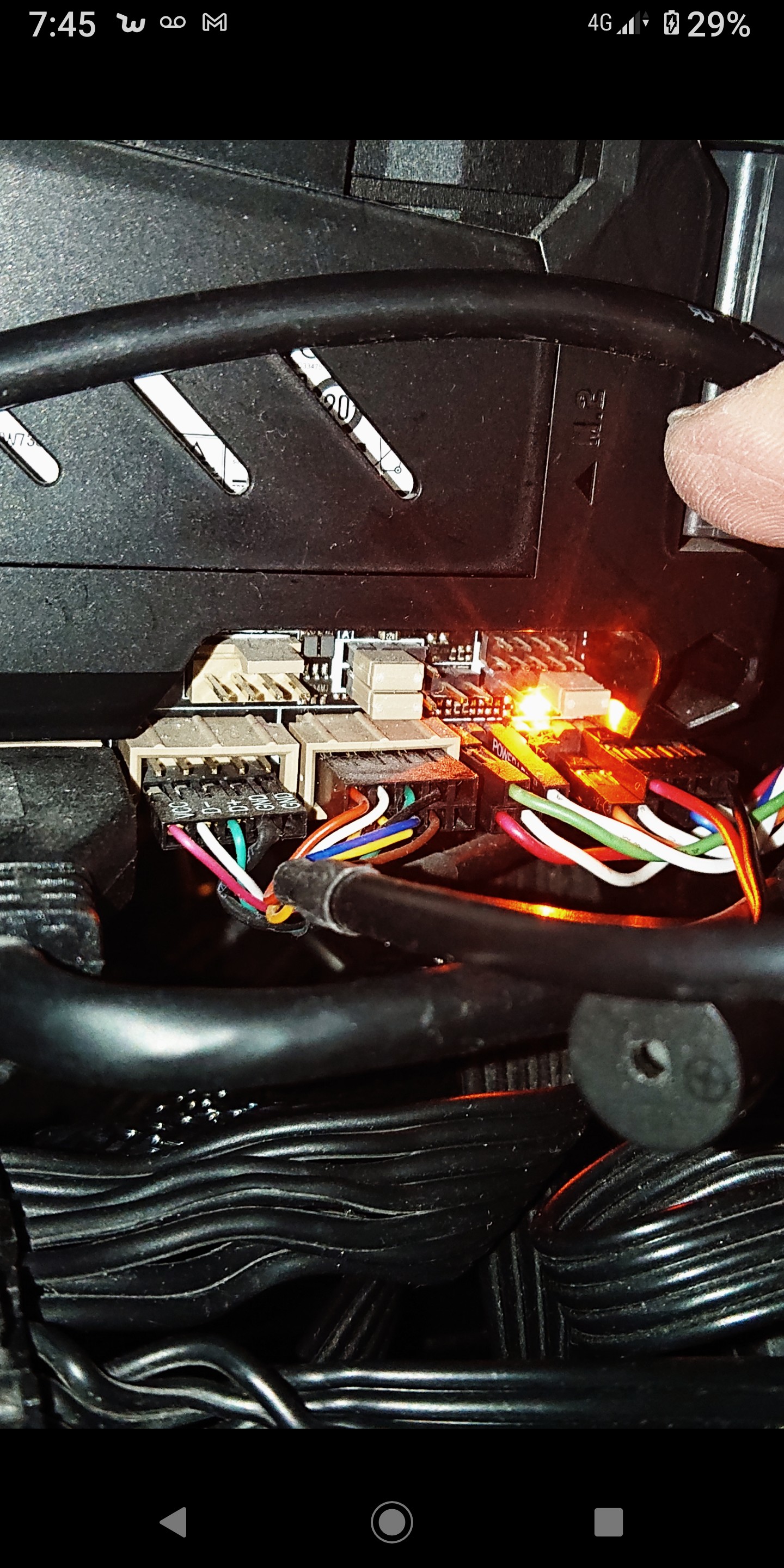

Power is getting to tbe board though as the power light lights up. Pic attached.
Where is the power switch on the mother board on these anyone know?
If its not tbe switch or power supply am i looking at a new motherboard?


Attachments

  • _20201210_195438.JPG
    796.7 KB · Views: 170
SpyderTracks

SpyderTracks

We love you Ukraine
Wsbudesign said:
Right ok.. So not good news. Power supply replaced but still dead.
I even swapped round the power switch and reset switch on tbe motberboard pins to see if it was the power switch and still nothing 🤔.
Power is getting to tbe board though as the power light lights up. Pic attached.
Where is the power switch on the mother board on these anyone know?
If its not tbe switch or power supply am i looking at a new motherboard?
Click to expand...
Check out 4.6, you have TUF Detective to troubleshoot the board.


I would also try resetting the CMOS which will be in that manual also, that could be preventing boot.

Although it does sound like a failed board.

W

Wsbudesign

Member
The Tuf Detective didnt connect. It said it could not find a device?!
Good news though,

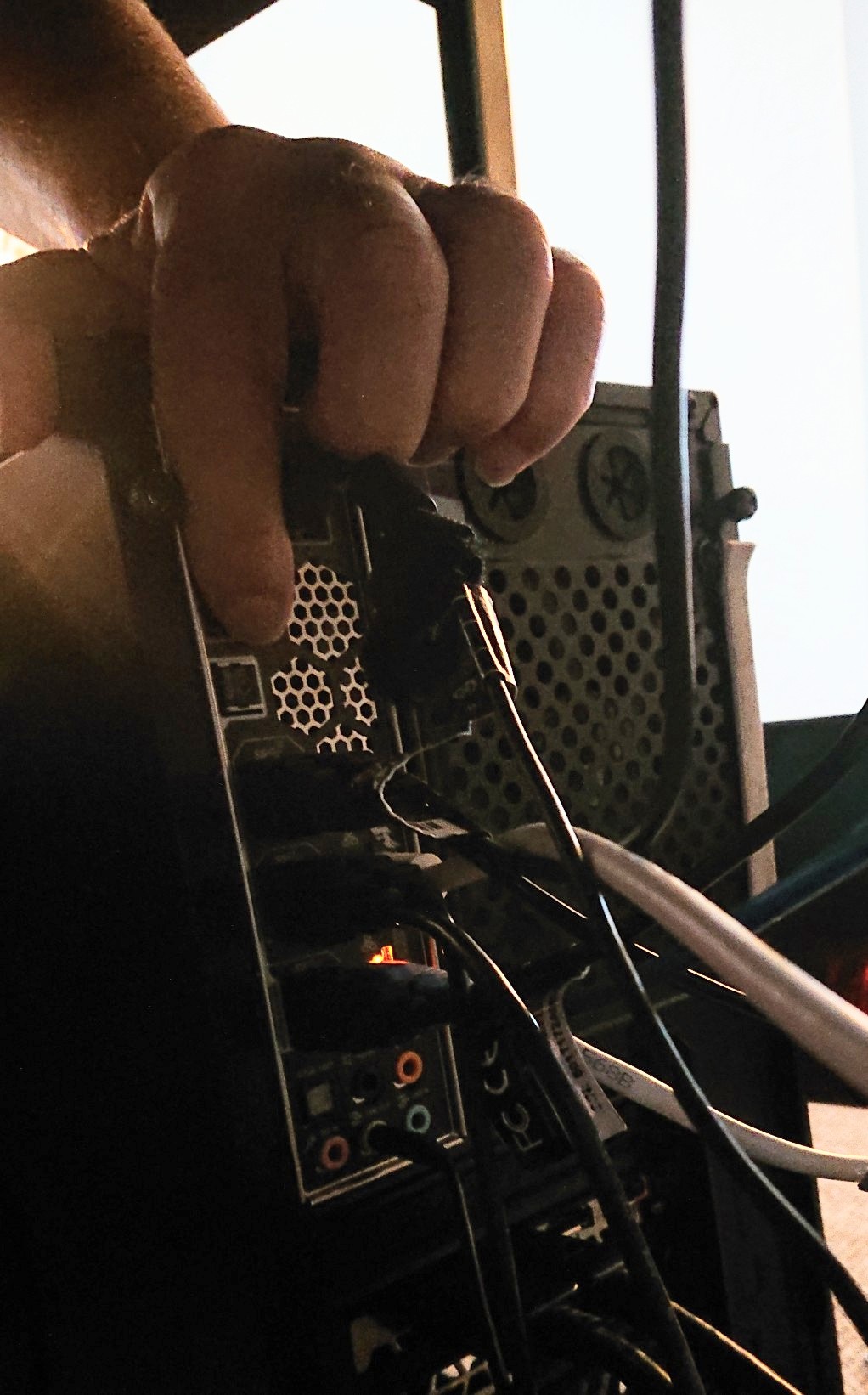

Power back to the motherboard and booted up ok.. No idea what i did other than to press this switch on the back of the case.

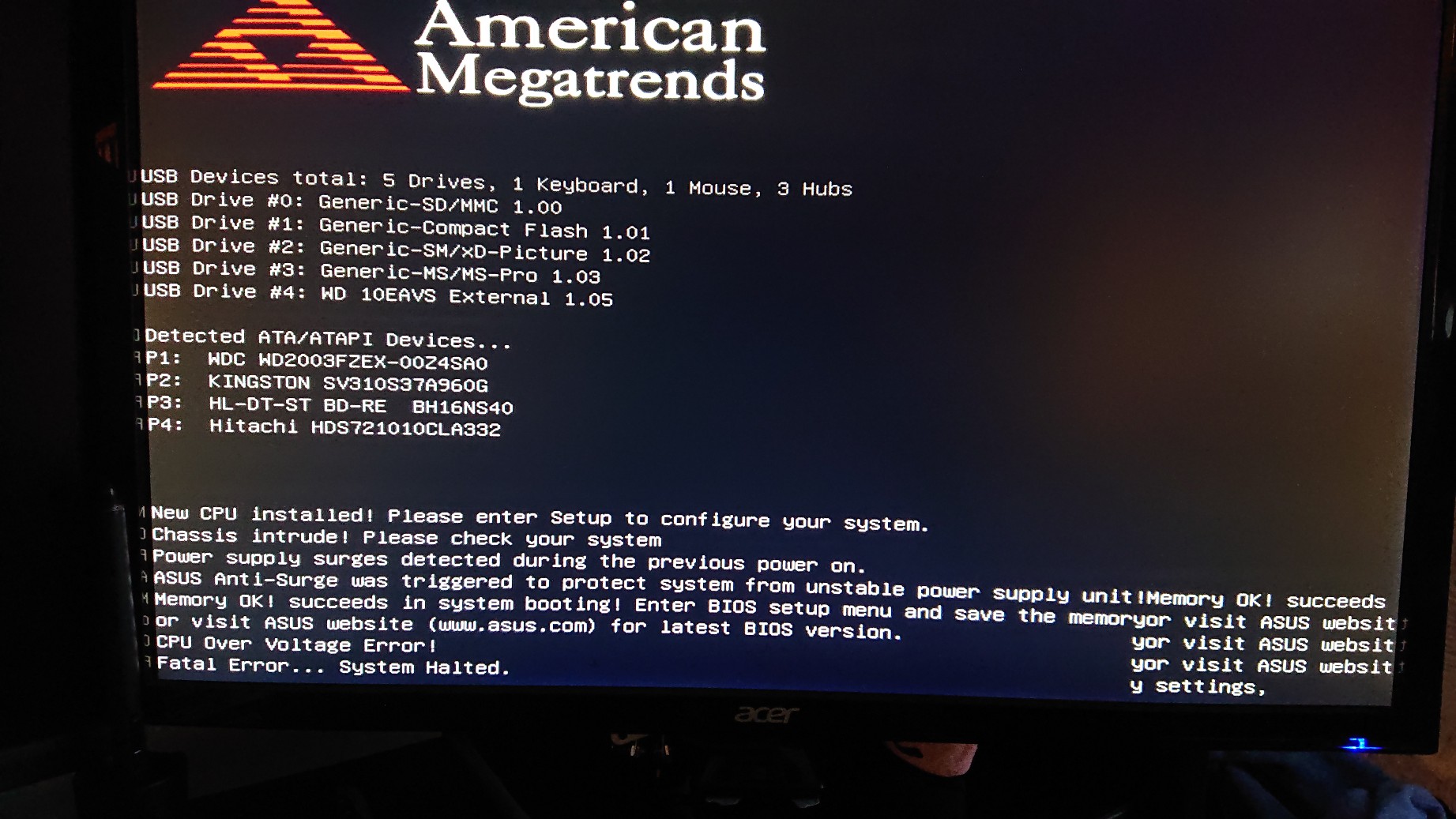

Reboot is ok but if i powerdown then switch on it seems to error... And i get this error screen now...
Think i will just leave it switched on...?
Any ideas why when i shutdown i get issues? But reboot and its ok?


Attachments

  • DSC_0101~2.JPG
    222.6 KB · Views: 166
  • DSC_0100.JPG
    354.1 KB · Views: 330
P

paul1224

Well-known member
Do you have 'Fast Start-up' enabled via Windows? if so would be interesting if you turned that off and then shut-down whether the issue is still there.

That is the most obvious difference between 'restart' and 'shutdown' I can think of for W10 as to why you may be seeing the issue not repeating.

W

Wsbudesign

Member
Thats not something i was aware of tbh.. I know in the BIOS i can change it there to fast or standard boot...i wasnt aware there was a Windows one too.. Do they both have to match?

SpyderTracks

SpyderTracks

We love you Ukraine
Wsbudesign said:
Thats not something i was aware of tbh.. I know in the BIOS i can change it there to fast or standard boot...i wasnt aware there was a Windows one too.. Do they both have to match?
Click to expand...
Disable Asus Anti Surge in the BIOS also, it's known to cause issues.

Have you applied any overclock or any adjustments to the CPU at all? Even if just selecting a power profile in the BIOS or windows utility?

It also says you have 3 hubs connected? Remove them while troubleshooting, could well be one of those causing a surge.

The chassis intrude message is because you have the side open, that's just a warning message which will disappear once the cover is back on.

W

Wsbudesign

Member
I will try and align the Windows and Bios start up modes and disable Anti Surge in the BIOS.
Not aware that ive chosen any overclocking either but will check.
What are the Hubs you refer to, the other hard drives that i have connected from old machines?
