Disk Speeds

[Pauljenks]

Had my new pc for a few days now and im loving it! apart from a few hiccups installing windows 11 drivers. Seems like updates have not caught up with the the latest X870E motherboards. Anyway all good now.

Been playing a few games. Wow what a difference from my last pcs computer i6700k 1080gpu,

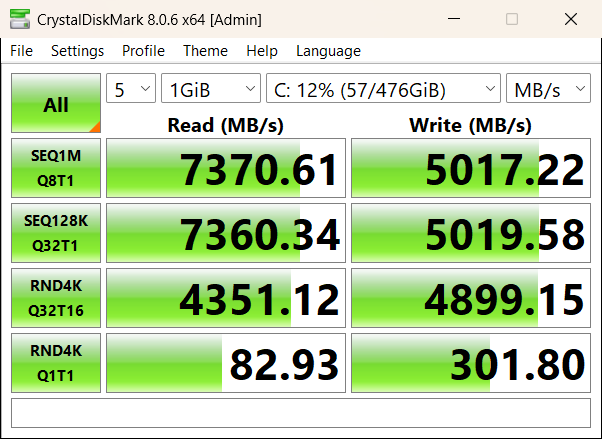

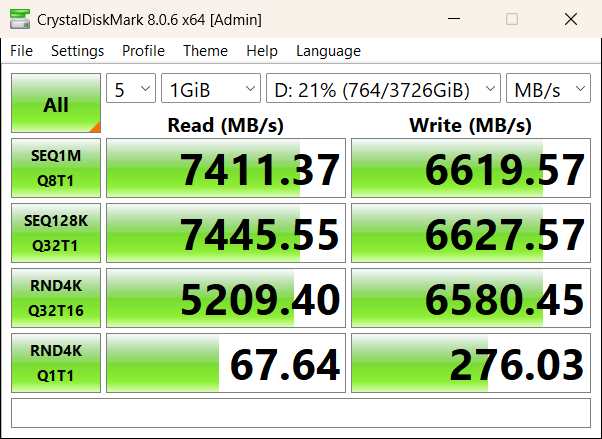

Been running crystaldiskmark on my 2 drives. Corsair MP600 PRO 4TB and Solidigm P44 pro 512GB



Are these figures about the speeds you expect to get from these drives.



[Scott]

Looks very healthy. Try and keep that C Drive at the 12% you've got it at now. It will bloat for sure, but even trying your best will make all the difference.



[TonyCarter]

Looks about right for their advertised peak speeds.

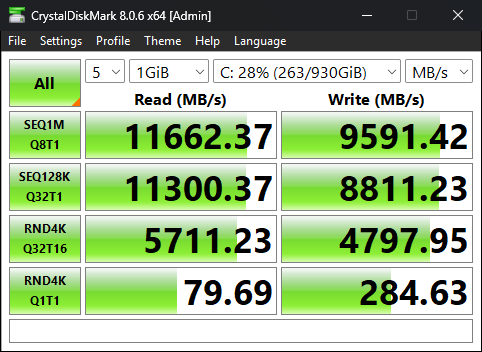

These are mine for a gen 5 1TB Crucial T700 (officially 11700MB/sR / 9500MB/sW)...

...and a gen 5 4TB Crucial P3 Plus Steam game drive (officially 4800MB/sR / 4100MB/sW):

...and an older gen 3 Crucial P3 game drive (officially 3500MB/sR / 3000MB/sW):

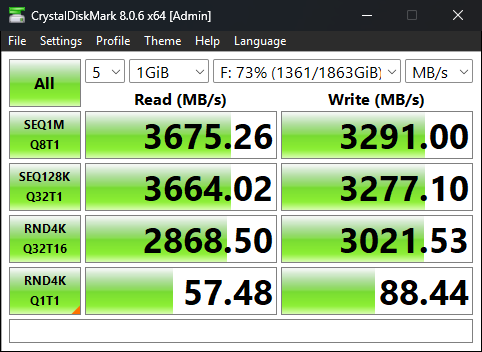

...an identical gen3 Crucial P3 game drive (officially 3500MB/sR / 3000MB/sW), but 75%full to show any detrimental effect of filling it up (which it doesn't seem to be showing except in the Q1T1 Writes ):

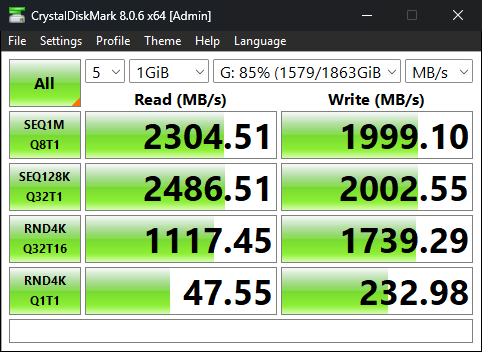

...and an almost full gen 3 Crucial P2 games drive (officially 2400MB/sR / 1900MB/sW:



[Pauljenks]

Looks very healthy. Try and keep that C Drive at the 12% you've got it at now. It will bloat for sure, but even trying your best will make all the difference.

Just about put everything I need on that drive. The os, diagnostics and benchmark apps and steam plus blizzard launchers. Rest is on the 4tb drive



[Pauljenks]

Looks about right for their advertised peak speeds.

These are mine for a gen 5 1TB Crucial T700 (officially 11700MB/sR / 9500MB/sW)...
View attachment 43675

...and a gen 5 4TB Crucial P3 Plus Steam game drive (officially 4800MB/sR / 4100MB/sW):
View attachment 43674

...and an older gen 3 Crucial P3 game drive (officially 3500MB/sR / 3000MB/sW):
View attachment 43681

...an identical gen3 Crucial P3 game drive (officially 3500MB/sR / 3000MB/sW), but 75%full to show any detrimental effect of filling it up (which it doesn't seem to be showing except in the Q1T1 Writes ):
View attachment 43680

...and an almost full gen 3 Crucial P2 games drive (officially 2400MB/sR / 1900MB/sW:
View attachment 43678

wow i love the Gen 5.0 crucial T700. Look at those speeds!



[TonyCarter]

wow i love the Gen 5.0 crucial T700. Look at those speeds!

Headline numbers look great (and the T705 is faster), but the randoms are not that much different to a decent Gen4 drive (like the P44 Pro or Corsair MP600 Pro).



[Scott]

Headline numbers look great (and the T705 is faster), but the randoms are not that much different to a decent Gen4 drive (like the P44 Pro or Corsair MP600 Pro).

Always the key for real world performance but you do get a serious bump in sustained read/write on the bigger files with the premium drives. I found that out the hard way many moons ago when I adopted early. Thought I was hitting the highs..... which I was, for all of 16GB of cache or something like that That's when I found out what you are paying for when the headline numbers are the same.



[TonyCarter]

It's like every piece of tech...show off the headline figures (max throughputs), and bury the details (sustained throughputs, cache size, cell bit-depth, endurance).

But for consumers it's not that important unless you really need the endurance of SLC/TLC at the cost of peak speeds for normal use.

I also like browsing BackBlaze disk reports to see what real endurance is like and where the trend is going...
