5080 Pcie 5.0 X16 SLOT running at x8

P

Pauljenks

Silver Level Poster
Case
LIAN LI O11DYNAMIC EVO RGB GAMING CASE
Processor (CPU)
AMD Ryzen 7 9800X3D Eight Core CPU (Up to 5.2GHz/104MB w/3D V-CACHE/AM5)
Motherboard
GIGABYTE X870E AORUS ELITE WIFI7 (AM5, DDR5, M.2 PCIe 5.0, Wi-Fi 7)
Memory (RAM)
Change to: 32GB Corsair DOMINATOR TITANIUM DDR5 6400MHz CL32 (2 x 16GB) KIT
Graphics Card
Change to: 16GB GIGABYTE GEFORCE RTX 5080 WINDFORCE OC - HDMI, 3 x DP
1st M.2 SSD Drive
512GB SOLIDIGM P44 PRO GEN 4 M.2 NVMe PCIe SSD (up to 7000MB/sR, 4700MB/sW)
2nd M.2 SSD Drive
4TB CORSAIR MP600 PRO NH NVMe PCIe M.2 SSD (up to 7000 MB/R, 6500 MB/W)
DVD/BLU-RAY Drive
NOT REQUIRED
Power Supply
CORSAIR 1200W HXi SERIES™ MODULAR 80 PLUS® PLATINUM V2
Power Cable
1 x 1.5 Metre UK Power Cable (Kettle Lead, 1.0mm Core)
Processor Cooling
CORSAIR ICUE LINK TITAN 360 RX RGB HIGH PERFORMANCE CPU COOLER
Thermal Paste
STANDARD THERMAL PASTE FOR SUFFICIENT COOLING
Extra Case Fans
4 x Corsair ICUE LINK RX120 RGB PWM Fan + Controller Kit
Sound Card
ONBOARD 6 CHANNEL (5.1) HIGH DEF AUDIO (AS STANDARD)
Network Card
ONBOARD 2.5Gbe LAN PORT
Wireless Network Card
NONE OR ONBOARD Wi-Fi (MOTHERBOARD DEPENDENT)
USB/Thunderbolt Options
MIN. 2 x USB 3.0 & 2 x USB 2.0 PORTS @ BACK PANEL + MIN. 2 FRONT PORTS
Operating System
Windows 11 Home 64 Bit - inc. Single Licence
Operating System Language
United Kingdom - English Language
Windows Recovery Media
Windows 10/11 Multi-Language Recovery Image - Unlimited Downloads from Online Account
Office Software
FREE 30 Day Trial of Microsoft 365® (Operating System Required)
Anti-Virus
NO ANTI-VIRUS SOFTWARE
Browser
Firefox™
Warranty
Change to: 3 Year Silver Warranty (1 Year Collect & Return, 1 Year Parts, 3 Year Labour)
Delivery
TIMED DELIVERY TO UK MAINLAND - MON-FRI (BEFORE 2PM)
Build Time
Standard Build - Approximately 6 to 8 working days
Miscellaneous
PCSpecialist 2023 Holo Sticker Sheet
Welcome Book
PCSpecialist Welcome Book

I Checked with gpu-z and found my 5080 card is running at Pcie 5.0 x8


I have 2 m.2 drives installed on the motherboard. i thought that with just 2 m.2 drives the gpu would use the full pcie 5.0 x16 slot.
Could reslotting them elsewhere free up the gpu to use the x16
I'm not bothered as it is a great card for me but i was just curious.
I assume that any performance loss by sharing is negligible for gaming?

SpyderTracks

SpyderTracks

We love you Ukraine
Pauljenks said:
Case
LIAN LI O11DYNAMIC EVO RGB GAMING CASE
Processor (CPU)
AMD Ryzen 7 9800X3D Eight Core CPU (Up to 5.2GHz/104MB w/3D V-CACHE/AM5)
Motherboard
GIGABYTE X870E AORUS ELITE WIFI7 (AM5, DDR5, M.2 PCIe 5.0, Wi-Fi 7)
Memory (RAM)
Change to: 32GB Corsair DOMINATOR TITANIUM DDR5 6400MHz CL32 (2 x 16GB) KIT
Graphics Card
Change to: 16GB GIGABYTE GEFORCE RTX 5080 WINDFORCE OC - HDMI, 3 x DP
1st M.2 SSD Drive
512GB SOLIDIGM P44 PRO GEN 4 M.2 NVMe PCIe SSD (up to 7000MB/sR, 4700MB/sW)
2nd M.2 SSD Drive
4TB CORSAIR MP600 PRO NH NVMe PCIe M.2 SSD (up to 7000 MB/R, 6500 MB/W)
DVD/BLU-RAY Drive
NOT REQUIRED
Power Supply
CORSAIR 1200W HXi SERIES™ MODULAR 80 PLUS® PLATINUM V2
Power Cable
1 x 1.5 Metre UK Power Cable (Kettle Lead, 1.0mm Core)
Processor Cooling
CORSAIR ICUE LINK TITAN 360 RX RGB HIGH PERFORMANCE CPU COOLER
Thermal Paste
STANDARD THERMAL PASTE FOR SUFFICIENT COOLING
Extra Case Fans
4 x Corsair ICUE LINK RX120 RGB PWM Fan + Controller Kit
Sound Card
ONBOARD 6 CHANNEL (5.1) HIGH DEF AUDIO (AS STANDARD)
Network Card
ONBOARD 2.5Gbe LAN PORT
Wireless Network Card
NONE OR ONBOARD Wi-Fi (MOTHERBOARD DEPENDENT)
USB/Thunderbolt Options
MIN. 2 x USB 3.0 & 2 x USB 2.0 PORTS @ BACK PANEL + MIN. 2 FRONT PORTS
Operating System
Windows 11 Home 64 Bit - inc. Single Licence
Operating System Language
United Kingdom - English Language
Windows Recovery Media
Windows 10/11 Multi-Language Recovery Image - Unlimited Downloads from Online Account
Office Software
FREE 30 Day Trial of Microsoft 365® (Operating System Required)
Anti-Virus
NO ANTI-VIRUS SOFTWARE
Browser
Firefox™
Warranty
Change to: 3 Year Silver Warranty (1 Year Collect & Return, 1 Year Parts, 3 Year Labour)
Delivery
TIMED DELIVERY TO UK MAINLAND - MON-FRI (BEFORE 2PM)
Build Time
Standard Build - Approximately 6 to 8 working days
Miscellaneous
PCSpecialist 2023 Holo Sticker Sheet
Welcome Book
PCSpecialist Welcome Book

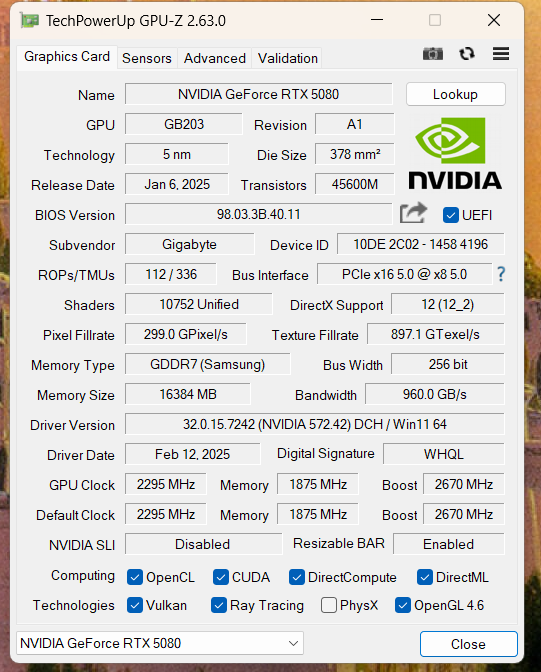

I Checked with gpu-z and found my 5080 card is running at Pcie 5.0 x8

View attachment 43696

I have 2 m.2 drives installed on the motherboard. i thought that with just 2 m.2 drives the gpu would use the full pcie 5.0 x16 slot.
Could reslotting them elsewhere free up the gpu to use the x16
I'm not bothered as it is a great card for me but i was just curious.
I assume that any performance loss by sharing is negligible for gaming?
Click to expand...
They've likely populated the wrong sockets.

If M2B_CPU or M2C_CPU are populated with an SSD, that will share bandwidth with the GPU and bring it down to x8

You want the 512 SolidGM in M2A_CPU and the secondary 4Tb MP600 in the M2D_SB port

That way everything will run at full speeds

P

Pauljenks

Silver Level Poster
SpyderTracks said:
They've likely populated the wrong sockets.

If M2B_CPU or M2C_CPU are populated with an SSD, that will share bandwidth with the GPU and bring it down to x8

You want the 512 SolidGM in M2A_CPU and the secondary 4Tb MP600 in the M2D_SB port

That way everything will run at full speeds
Click to expand...
Thanks for that. Putting the m.2 drives in the new slots won't affect the data in any way?
